Unlocking FPGA Innovation with Tang Nano 20K: Features, Advantages, and Applications

Introduction

The Tang Nano 20K is a powerful and compact FPGA development board designed by Sipeed, based on Gowin's GW2AR-18 FPGA. It is an excellent choice for embedded system developers, hobbyists, and engineers looking for a cost-effective yet powerful FPGA solution. With its 20K LUTs (Look-Up Tables), high-speed interfaces, and integrated hardware resources, the Tang Nano 20K is ideal for a range of applications, including edge computing, AI acceleration, video processing, and industrial control.
As a leading PCB and PCBA manufacturer, we offer custom PCB design and assembly services optimized for FPGA-based projects. This article explores the Tang Nano 20K's key features, advantages, and applications, helping developers and businesses leverage this FPGA board to its full potential.

Key Features of Tang Nano 20K

The Tang Nano 20K offers impressive hardware capabilities packed into a compact form factor. Below are some of its key specifications:

Download Product Specification

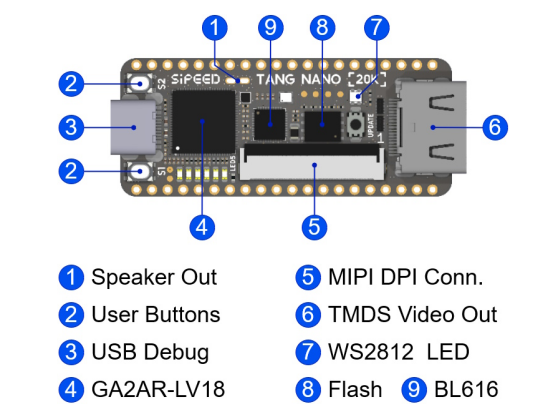

Function diagram

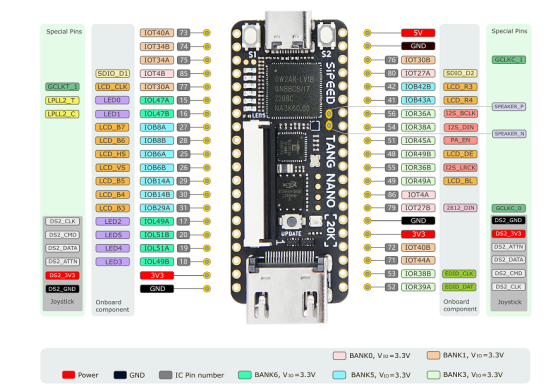

Pin diagram

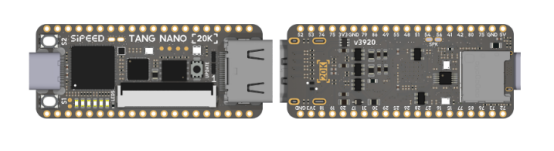

FPGA Jtag test point

We reserved jtag test point on Tang Nano 20K, for those who want to use their own debugger.
Note: There is onboard Jtag for download FPGA firmware, so this Jtag test point is only for those who want to use their own debugger.

Advantages of Tang Nano 20K

High-Performance FPGA at Low Cost

The Tang Nano 20K provides 20K LUTs, significantly more than its predecessor, making it suitable for complex logic designs. Despite its power, it remains cost-effective, making it ideal for students, engineers, and startups looking to experiment with FPGA-based solutions.

Integrated Hardware Resources

This board includes 64Mb of PSRAM, 16MB NOR Flash, and multiple high-speed interfaces (such as MIPI DSI, RGB LCD, SPI, and LVDS). This makes it an excellent choice for applications that require fast data processing, such as video signal processing and AI acceleration.

User-Friendly Development Environment

The Tang Nano 20K is supported by Gowin’s IDE (Gowin EDA), which simplifies FPGA development with an easy-to-use graphical interface. Developers can program the FPGA using Verilog or VHDL, making it accessible for both beginners and experienced professionals.

Compact and Energy Efficient

The small form factor and low power consumption make it an excellent choice for portable and embedded applications. It can be powered via USB Type-C, ensuring easy integration into various projects.

 Open-Source Community Support

With growing adoption among developers, the Tang Nano 20K benefits from a strong open-source community. Numerous example projects, tutorials, and GitHub repositories make it easier for newcomers to get started and for experienced engineers to accelerate development.

Applications of Tang Nano 20K

1. Edge AI and Machine Learning Acceleration

With its high-speed processing capabilities and low power consumption, the Tang Nano 20K can be used for AI inference at the edge, accelerating deep learning models for applications such as:

• Object recognition in embedded vision systems
• Speech processing and audio recognition
• AI-based industrial automation

2. Video and Image Processing

Thanks to its MIPI DSI and RGB LCD support, the Tang Nano 20K is ideal for video applications such as:

• FPGA-based video encoding and decoding
• Real-time image filtering and enhancement
• Digital signage and interactive display systems

3. Industrial Control and Automation

Many industrial systems require real-time control and reliable processing. The Tang Nano 20K can be used in:

• Smart PLC systems for industrial automation
• Motor control and robotics
• High-speed data acquisition and signal processing

4. Communications and Networking

With its high-speed LVDS and SPI interfaces, the board is well-suited for:

• Custom wireless communication protocols
• FPGA-based SDR (Software Defined Radio)
• High-speed sensor data transmission

5. FPGA-Based Cryptography and Security

Due to its customizable logic capabilities, the Tang Nano 20K is ideal for secure applications such as:

• Hardware-accelerated encryption/decryption
• Blockchain mining and cryptographic calculations
• IoT security modules

Why Choose Our PCB and PCBA Services for Tang Nano 20K Projects?

1. High-Quality PCB Manufacturing

We specialize in custom PCB fabrication with advanced materials and precision manufacturing. Whether you need high-density interconnect (HDI) PCBs, multi-layer boards, or flexible PCBs, we provide tailored solutions for FPGA applications.

2. Professional PCBA Services

We offer comprehensive PCBA (Printed Circuit Board Assembly) services, including:

• Component sourcing for high-quality FPGA parts
• Automated SMT assembly for precision soldering
• Prototype and mass production capabilities
• Complete testing processes to ensure high reliability and performance

3. Fast Prototyping and Small-Batch Production

For developers and startups working on Tang Nano 20K-based projects, our fast PCB prototyping services ensure rapid testing and deployment. We support small-batch and large-scale production, depending on project needs.

4. Custom Design Support

Our engineering team provides design optimization for high-speed FPGA applications, ensuring:

• Signal integrity and power optimization
• Efficient PCB layouts for minimal EMI/EMC issues
• Thermal management solutions

5. Global Shipping and Support

We provide worldwide shipping with fast turnaround times and 24/7 customer support to assist with your PCB and PCBA requirements.

Conclusion

The Tang Nano 20K is an excellent FPGA development board, offering a perfect balance of performance, affordability, and versatility. Whether you’re developing AI applications, industrial automation solutions, video processing systems, or secure cryptographic hardware, this FPGA platform provides a solid foundation.
As a leading PCB and PCBA provider, we ensure that your Tang Nano 20K-based designs achieve maximum efficiency, reliability, and scalability. Looking to bring your FPGA project to life? Contact us today for high-quality PCB manufacturing and assembly services tailored to your needs!

Get a Quote Today! Contact Us for customized PCB and PCBA solutions for your Tang Nano 20K development projects.
