RAK3172: The Ultimate LoRaWAN Module for IoT Applications in 2025

Posted:02:42 PM March 14, 2025 writer: ​NextPCB

As the Internet of Things (IoT) continues to revolutionize industries, the demand for reliable, low-power, and long-range communication solutions is at an all-time high. Enter the RAK3172, a cutting-edge LoRaWAN module designed to meet the needs of modern IoT applications. In this article, we explore the features, advantages, and applications of the RAK3172, and why it is poised to be a game-changer in the IoT landscape by 2025. We’ll also dive into a real-world application case study to demonstrate its practical use.
Smart Water Management System

Smart Water Management System

Challenge:
A municipal water utility company faced challenges in monitoring water levels, pressure, and quality across its vast network of reservoirs and pipelines. Manual inspections were time-consuming, costly, and often resulted in delayed responses to leaks or contamination.
Solution:
The company deployed a Smart Water Management System powered by the RAK3172 LoRaWAN module. Here’s how it worked:
1. Sensor Integration:
   - Water level sensors, pressure sensors, and water quality sensors were installed at key points in the water distribution network.
   - These sensors were connected to the RAK3172 module, which acted as the communication hub.
2. LoRaWAN Connectivity:
   - The RAK3172 transmitted sensor data to a central LoRaWAN gateway using its long-range, low-power communication capabilities.
   - Data was sent securely and reliably, even in remote or underground locations.
3. Cloud-Based Monitoring:
   - The collected data was sent to a cloud platform for real-time monitoring and analysis.
   - The utility company could access dashboards to view water levels, detect leaks, and monitor water quality.
4. Automated Alerts:
   - The system was configured to send automated alerts to maintenance teams in case of anomalies, such as sudden pressure drops or contamination.
Results
- Improved Efficiency: Real-time monitoring reduced the need for manual inspections, saving time and resources.
- Cost Savings: Early detection of leaks and contamination minimized water loss and repair costs.
- Enhanced Service: The utility company could provide better service to residents by ensuring a consistent and safe water supply.

What is the RAK3172?

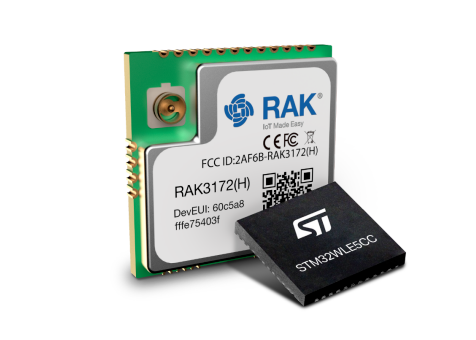

rak3172
The RAK3172 is a LoRaWAN module developed by RAKwireless, a leading provider of IoT solutions. It is based on the STM32WLE5JC SoC from STMicroelectronics, which integrates a powerful ARM Cortex-M4 processor and a LoRa transceiver. This combination makes the RAK3172 an ideal choice for a wide range of IoT applications, from smart agriculture to industrial automation.
RAK3172 Core Features & Technical Specifications

1. Hardware Highlights

  • MCU: STM32WLE5JC (Cortex-M4 @48MHz + LoRa radio)

Wireless Features:

  • LoRaWAN: Supports 868/915MHz bands, max link budget 168dB
  • Bluetooth 5.0: Enables smartphone configuration & direct data transfer

Power Efficiency:

  • Sleep mode: 1.6μA
  • Wide voltage input: 1.8V–3.6V (compatible with solar panels)

2. Key Specs Comparison

Parameter   RAK3172   RAK4630  Heltec LoRa32 V3
Core Chip   STM32WLE5JC  nRF52840+SX1262 ESP32-C3 + SX1262
Protocol Support LoRaWAN + BLE   LoRa + BLE + Zigbee  LoRaWAN
Max TX Power      22dBm   20dBm 20dBm
I/O Interfaces   12xGPIO, UART  24xGPIO, NFC 18xGPIO, OLED
Price (USD)    $16   $26   $12

Industrial Use Cases & Implementation

1.Smart Cities: Remote Water Meter Monitoring

Hardware Setup:

  • RAK3172 + FS4001 flow sensor
  • IP68-rated explosion-proof enclosure

Software Workflow:

  • Data protocol: LoRaWAN Class A (hourly uplink)
  • Platform integration: TTN or AWS IoT Core

2. Agricultural IoT: Crop Environment Sensing

Sensor Integration:

  • RS485 soil moisture/temperature probes
  • Solar panel (6V/3W) + Lithium Thionyl Chloride battery

Power Optimization:

  • Deep sleep mode with 3 daily wake-ups
  • CAD (Channel Activity Detection) for energy savings

3. Industrial Predictive Maintenance

Architecture:

  • RAK3172 + ADXL345 vibration sensor
  • RAK7289 outdoor LoRa gateway

Edge Analytics:

  • FFT spectrum analysis on STM32
  • Instant alerts for RMS vibration >5.0m/s²

4. Asset Tracking Solutions

 Hardware Design:

  • RAK3172 + BeiDou/GPS module
  • 3D-printed anti-tamper casing + magnetic mounting

Security:

  • AES-128 encrypted uplinks
  • Dynamic BLE pairing keys

Competitor Comparison & Selection Guide

Use Case Recommendation  Reason
Multi-protocol (Zigbee)  RAK4630    Supports Thread/Zigbee 3.0
Budget-friendly     Heltec LoRa32 V3  Built-in OLED, under $12
Harsh Environments   RAK3172 + Metal Case   STM32 operates at -40°C to 85°C
Security-Critical   RAK3172 + SE050 Secure Element   Enables blockchain key management

FAQ: Top Developer Queries

Q1: Can RAK3172 connect directly to AWS or Amazon cloud IoT Core?
Yes! Configure your LoRaWAN gateway for AWS IoT Core via CoAP protocol.
Q2: Does the BLE support mesh networking?
No. BLE is for device configuration. Use RAK4630 for Zigbee/Thread mesh.
Q3: What’s the maximum real-world transmission range?
~2km in urban areas (SF12), up to 15km in rural LOS conditions.
Q4: How to enable FOTA (Firmware Over-the-Air)?
Implement FUOTA via LoRaWAN, requiring LNS-enabled gateways.

As a trusted PCB and PCBA manufacturer, we offer custom PCB manufacturing and assembly services to help bring your RAK3172-based IoT solutions to life. Contact us today to get started on your LoRaWAN-enabled projects!
