Power Circuit at PCB Board Design

The power circuit is an integral part of a digital item. The style of the power circuit is straight about the efficiency of the item. The power circuits of our digital items generally consist of direct power products and also high frequency changing power products. Theoretically, the direct power supply is just how much existing the individual requires, just how much current is needed at the input; the changing power supply is just how much power the individual requires, as well as just how much power is provided to the input.

Straight power supply

The direct power supply tool operates in a straight state, such as our typically utilized voltage regulatory authority chips LM7805, LM317, SPX1117, and more.
The straight power supply contains useful parts such as correction, filtering system, voltage guideline, and also power storage space. At the same time, the basic direct power supply is a collection managed power supply, as well as the outcome current amounts to the input present. I1= I2+ I3, I3 is the referral end, as well as the existing, is little. As a result, I1 ≈ I3. Why do we discuss existing, since the size of each line is not developed delicately in PCB style, it is established according to the existing in between the element nodes in the schematic layout (please examine the PCB layout copper and also platinum density, line size as well as Present partnership table)). The present circulation, as well as present circulation, are to be made clear, as well as the board is ideal.

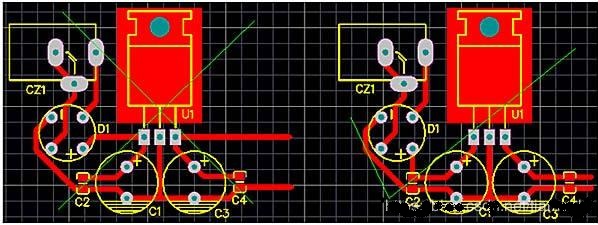

When developing the PCB, the design of the elements needs to be portable. To make all the links as brief as feasible, it is needed to set out the parts as well as traces according to the practical connection of the schematic parts. In this power supply layout, it is first fixed, refiltered, filtering system, and afterward supported. After the voltage is supported, it is the storage space capacitor. After streaming with the capacitor, it is made use of to power the circuit behind. Number 2 is a PCB representation of the above schematic, both layouts are comparable. The left and also best representations are a little various. The power supply left wing is fixed and also straight most likely to the input pin of the regulatory authority chip. After that, it is the voltage regulatory authority capacitor. The filter impact from the capacitor is a lot even worse. There are likewise issues. The picture on the right is a much better photo. We should not just take into consideration the circulation instructions of the favorable power supply, yet additionally need to think about the reflow trouble. Usually talking, the favorable power supply line as well as the ground return line must be as close as feasible per various others and also near each other.

When developing a straight power supply PCB, you must likewise focus on the warm dissipation issue of the power supply chip of the straight power supply Exactly how does the warm originate from? If the front end voltage of the voltage regulatory authority chip is 10V, the outcome terminal is 5V, and also the outcome current is 500mA, after that the voltage regulatory authority chip There is a voltage decline of 5V, as well as the created warm is 2.5 W. If the input voltage is 15V, the voltage decrease is 10V, as well as the created warm, is 5W. As a result, we require to leave adequate room for the warmth dissipation. Cooling down room or an affordable warmth sink. Direct power materials are normally made use of when the voltage distinction is fairly tiny and also the existing is reasonably little. Or else, make use of a changing power supply circuit rather.

The changing power supply utilizes high-speed transmission as well as cut-off via the circuit control change tube to create the PWM waveform. Via the inductor as well as the self-contained diode, the electro-magnetic voltage is utilized to manage the voltage. The changing power supply has high power, high effectiveness as well as reduced warmth generation. The circuits we typically make use of are LM2575, MC34063, SP6659, and so on. Theoretically, the changing power supply is equivalent in power at both ends of the circuit, the voltage is vice versa symmetrical, as well as the present, is vice versa symmetrical.

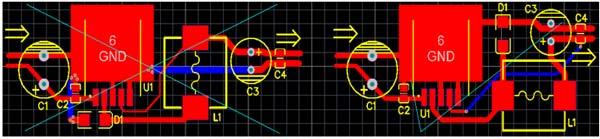

When creating a changing power supply PCB, the indicate be kept in mind are the intro factor of the responses line, and also the self-contained diode is for whom the freewheeling. As can be seen from Number 3, when U1 is activated, present I2 gets in inductor L1. The attribute of the inductor is that the current can not stream all of a sudden in the inductor, as well as it can not unexpectedly go away. There is a time program when the existing modifications in the inductor. Under the activity of the pulse existing I2 moving via the inductor, part of the electrical power is exchanged magnetic power, as well as the present, is progressively enhanced. At a particular time, the control circuit U1 shuts off I2, as well as the current can not unexpectedly go away because of the features of the inductor, and also the diode acts right now. It changes the existing I2, so it is called a self-contained diode. It can be seen that the self-contained diode is utilized for the inductor. The self-contained present I3 begins with the adverse end of C3 as well as moves right into the favorable end of C3 with D1 as well as L1. This amounts to a water pump that utilizes the power of the inductor to raise the voltage of capacitor C3. There is likewise a comments line intro factor trouble for voltage discovery, which needs to be fed back after filtering system, or else the result voltage surge will certainly be bigger. These 2 factors are commonly forgotten by lots of PCB developers. They assume that the very same network is not the very same. The real link is various, as well as the efficiency effect is huge.
Why do we wish to discuss the concept of the schematic carefully, since the schematic consists of a great deal of PCB info, such as the accessibility factor of the port pins, the current of the node network, and so on, to see the schematic, PCB style is not a trouble. The LM7805 and also LM2575 circuits stand for the common format circuit of the straight power supply and also the changing power supply. When the PCB is utilized, the format and also electrical wiring of both PCB formats can be straight done, yet the items are various, the circuit card is various, as well as readjusted according to real problems.

High frequency changing the power supply.
