BC547 Transistor: Ultimate Guide for Engineers and Hobbyists

The BC547 is one of the most versatile NPN transistors in electronics, powering everything from amplifier circuits to IoT sensor switches. Whether you're building your first DIY project or optimizing industrial designs, this guide covers every detail – from pinout diagrams to failure-proof circuit tips.

1、Why the BC547 Dominates Low-Power Circuits

1）A staple in prototyping and commercial devices, the BC547 offers:
2）Affordability – Costing under $0.10 per unit in bulk
3）High Gain (hFE 110-800) for precise signal amplification
4）Compact TO-92 Package – Fits breadboards and high-density PCBs
5）45V Voltage Tolerance – Robust protection against voltage spikes

6）BC547 Transistor Technical Specifications

Note: BC547 variants (A/B/C) differ in hFE:

BC547A: 110-220

BC547B: 200-450

BC547C: 420-800

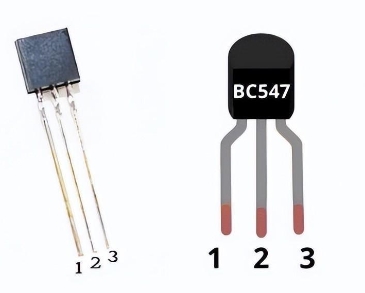

2、BC547 Pinout Diagram & Testing

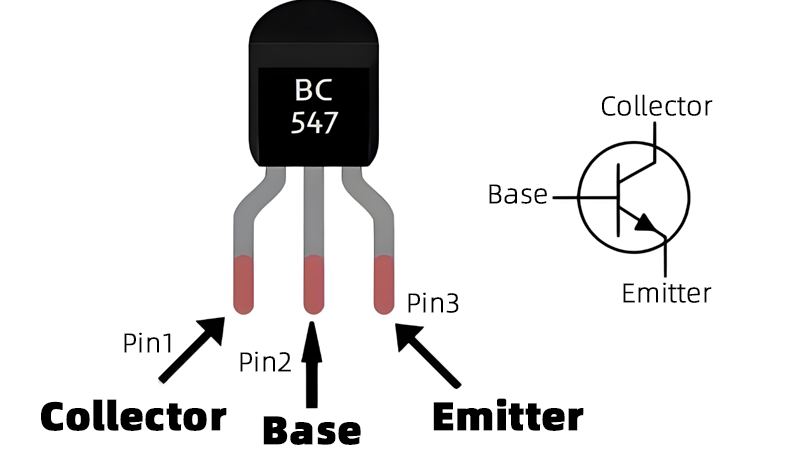

BC547 Pinout

(Note: Add actual image link in production)

Pin 1 (Collector): Connects to load (LED/motor) in switching circuits.

Pin 2 (Base): Control terminal – bias with 5-10mA via resistor (R = (Vin - 0.7V)/Ib).

Pin 3 (Emitter): Ground referenced in common-emitter configurations.

Multimeter Testing:

Set to diode mode.

Red probe on Base, Black on Emitter: ~0.7V drop confirms NPN validity.

Reverse probes: OL reading indicates healthy junctions.

3、Top 5 Practical BC547 Circuits

1） LED Driver Circuit

Use Case: Controlling high-brightness LEDs beyond Arduino's 20mA limit.

Vin (5V) → 220Ω resistor → Base

Collector → LED → 100Ω → GND

Emitter → GND

Formula: RB = (Vin - 0.7V) / (ILED / hFE_min)

2）Audio Preamplifier

Gain: AV ≈ RC / RE (Typical gain 50-100 with RC=4.7kΩ, RE=100Ω).

3） Relay Driver with Flyback Diode

Critical Components:

1N4007 diode across relay coil to suppress back-EMF.

Base resistor calculation: RB ≤ (Vin - 0.7V) / (Ic / hFE_min).

4） Light Sensor Switch

LDR Integration:

LDR + 10kΩ voltage divider → BC547 Base

Collector → Buzzer

Emitter → GND

5）Darlington Pair for High Gain

Combine BC547 with PN2222:
Effective hFE: ~10,000 (for microcontroller-level signal amplification).

4.BC547 Equivalents & Alternatives

Cross-Reference Rules:

For Ic >100mA: Upgrade to TIP120 Darlington.

For SMD designs: Use MMBT3904 (SOT-23).

5、ommon Failure Causes & Solutions

Thermal Runaway:

Symptom: Burnt smell, hFE degradation.

Fix: Add emitter resistor (RE ≥ 10Ω) for negative feedback.

ESD Damage:

Prevention: Use anti-static mats and wrist straps during handling.

Overcurrent Failure:

6、Diagnose: Check collector current with multimeter in series.

Purchasing Guide: Avoiding Counterfeits

Certified Distributors: LCSC, Mouser, and authorized local resellers.

Spotting Fakes:

Legitimate BC547 markings: "BC547" + suffix (A/B/C) + lot code.

HFE test using Arduino transistor tester.

7、FAQ for Engineers

Q1: Can BC547 handle 12V relays?
Yes, if relay coil current ≤100mA. For larger coils (e.g., 250mA), use a MOSFET.

Q2: Why my amplifier circuit oscillates?
Add 100pF capacitor between Collector and Base (Miller compensation).

Q3: SMD alternative for BC547?
MMBT3904 (SOT-23) or BC847 (identical specs in SMD format).
