Battery Display Circuits

Posted:02:47 PM September 18, 2021 writer: tom

Right here is an easy Battery Display circuit for a fast check of 12-volt Lead-Acid Battery. The battery fee must be continuously kept track of to boost the life of the battery. Overcharge in addition to under fee will certainly lower the battery life. The incurable voltage of the Lead-Acid battery ought to be within the variety of 12.5 to 13.5 volts. If the battery voltage lowers listed below 10 volts for an extended period, the battery will certainly decline any type of billing present. In a similar way, if the incurable voltage surpasses over 14 volts, the battery will certainly be ruined.

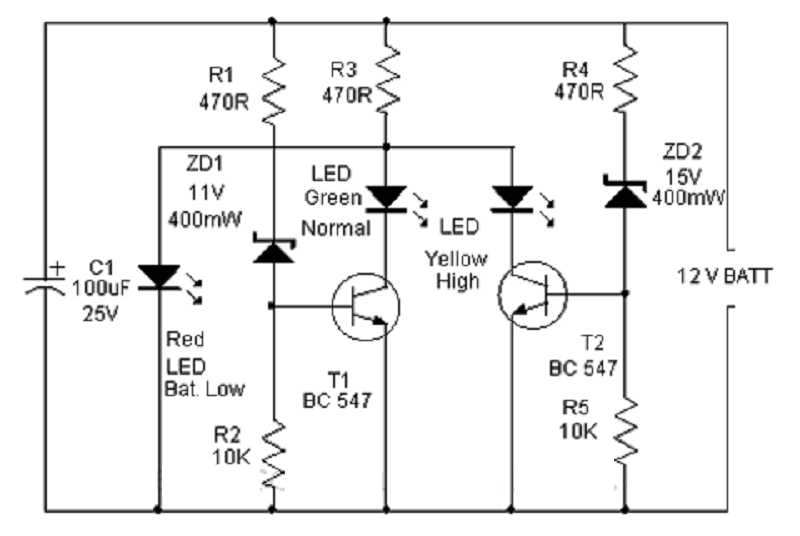

The circuit is a Zener regulated transistor button that lights 3 LEDs Red, Environment-friendly as well as Yellow to reveal battery states like Reduced, Regular as well as High. When the battery voltage is less than 11 volts, Zener diodes ZD1 and also ZD2 stop to perform and also Red LED just lights suggesting reduced battery problem. If the voltage is in between 12 volts and also 14 volts, Zener diode ZD1 onward prejudice as well as T1 carries out. The Eco-friendly LED is linked to the enthusiast of T1 lights suggesting typical voltage. If the battery voltage surpasses 15 volts, Zener diode ZD2 additionally performs as well as T2 ahead prejudice. This lights Yellow LED suggesting over fee. Therefore the adhering to signs can be acquired.

Battery Display Circuits

battery display circuit

Tag: battery circuit
