The trouble of PCB turn green

Posted:01:58 PM May 13, 2021 writer: nextpcb

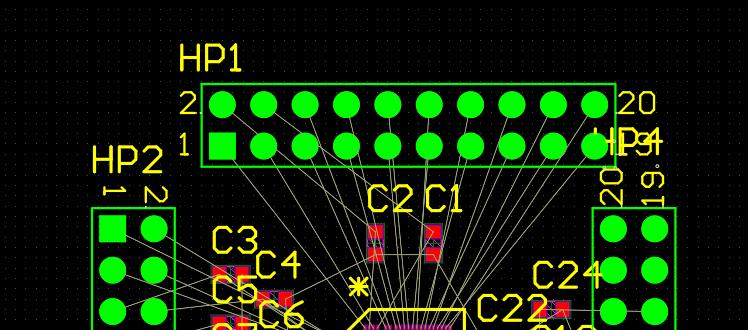

When we PCB design aspects, often discover that when components count as well close will certainly turn green, remove will certainly be recovered. Picture:
pcb layout turn green
however we have to get on the PCB location has actually needed time, it is needed to transform it in many cases, as adheres to:

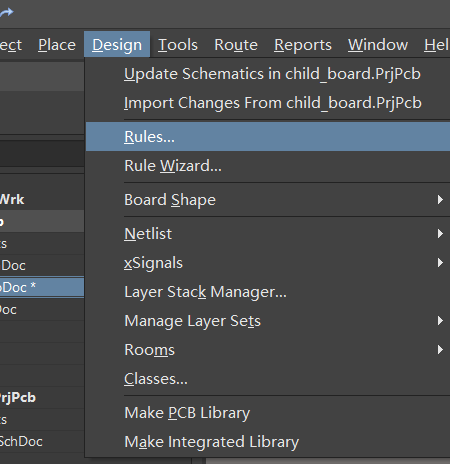

① Click Layout -> Regulations
pcb design

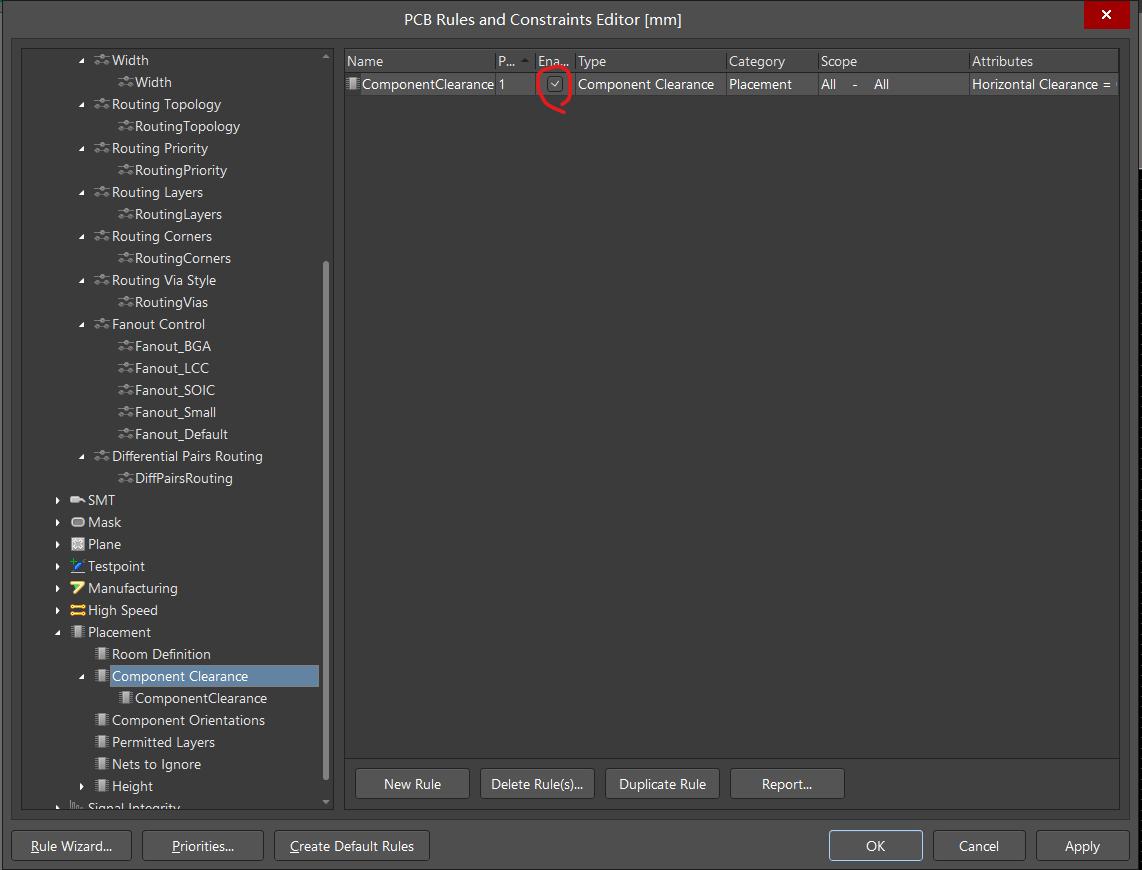

② locate Element Clearance, i.e. cell void, both √ Enable terminate, after that Use -> OK
pcb apply

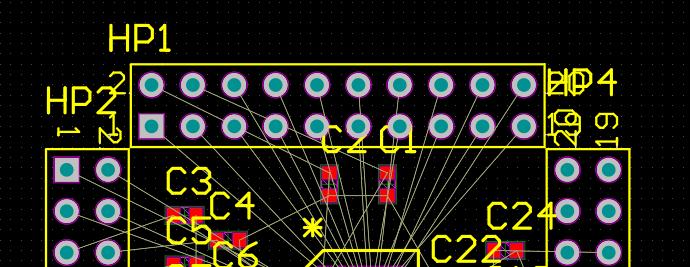

outcomes were as adheres to:
pcb result

Still, need help? Contact Us: support@nextpcb.com
