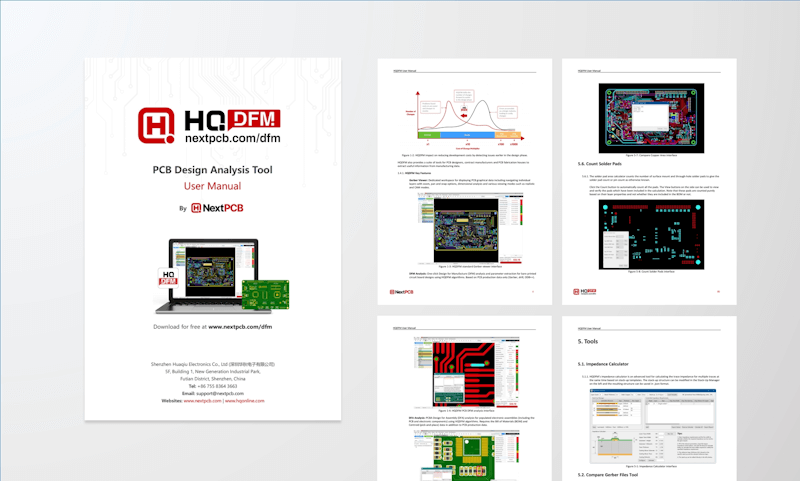

The full HQDFM user guide is now available! Download the PDF manual for installation and usage instructions, DFM guidelines and expert PCB design tips. Whether you are a PCB designer, contract manufacturer (CM) or procurement manager, from viewing Gerber files to in-depth DFM analysis, this manual covers it all!
HQDFM is a free PCB file viewer and DFM tool from NextPCB with advanced design for manufacturing and assembly (DFM and DFA) capabilities and PCB design tools. With over 400,000 users worldwide, HQDFM's Design for manufacture capabilities cover a checklist of over 1200 detailed DFM guidelines from signal integrity to footprint analysis and footprint checking, and also includes specialized manufacturing tools such as the Gerber panelizer, batch impedance calculator, Gerber comparison tool, and PCB cost calculator.
HQDFM supports all major design software and can read Gerber files from most PCB Design Software including Altium, Autodesk Eagle, KiCad, OrCAD/Allegro, DipTrace, DesignSpark, EasyEDA and more. In addition to viewing Gerber files, HQDFM also serves as an ODB++ viewer and KiCad viewer for KiCad PCB (.kicad_pcb) files.
Download HQDFM for free and transform your PCB design to production workflow today
Or try the online Gerber Viewer version of HQDFM.
