MLCC 0402 vs 0201 vs 0603: Size Selection Guide for High-Density PCB Assembly

Introduction: The Miniaturization of SMD Capacitors

As electronic devices become smaller, faster, and more highly integrated, the demand for high-density PCB design has skyrocketed. At the heart of this miniaturization trend are Multilayer Ceramic Capacitors (MLCCs). Whether you are designing a smartphone, an IoT wearable, or a high-speed telecommunications board, you will inevitably face a critical choice: Which SMD capacitor size should you use?

Currently, the 0603, 0402, and 0201 package sizes dominate the electronics manufacturing industry. While transitioning from a 0603 to a 0201 capacitor saves a tremendous amount of board space, it introduces profound challenges in PCB layout, parasitic inductance, and Surface Mount Technology (SMT) assembly yield. Understanding what an MLCC is and how its physical dimensions impact your board's electrical performance and manufacturability is an essential skill for any hardware engineer.

This guide provides a deep dive into the MLCC 0402 vs 0201 vs 0603 dilemma, exploring their trade-offs in capacitance density, high-frequency performance, and PCB footprint design to ensure your next high-density project is built for success.

1. Table of Contents

• Introduction: The Miniaturization of SMD Capacitors
• Understanding Imperial vs. Metric MLCC Sizes
• Detailed Comparison: 0603 vs 0402 vs 0201
• MLCC Package Size Selection Table
• PCB Layout Rules for Miniaturized MLCCs
• PCB Design Rules Summary Table
• SMT Assembly Challenges: Tombstoning and Quality Control
• How to Choose the Right MLCC Package Size for Your PCB
• Frequently Asked Questions (FAQ)
• Ready for Assembly?

Understanding Imperial vs. Metric MLCC Sizes

Before diving into the comparisons, it is crucial to clear up a common source of confusion in the PCB design world: the naming conventions of SMD components. MLCC package sizes are typically referred to by a four-digit code, which represents the length and width of the component.

However, there are two distinct standards: the Imperial (EIA) standard in inches, and the Metric standard in millimeters. In North America and many international hardware communities, the Imperial code is the default standard. A mismatch between imperial and metric footprints in your BOM or CAD tool can lead to catastrophic SMT assembly failures.

• 0603 (Imperial) = 1608 (Metric) → 0.06 × 0.03 inches / 1.6 × 0.8 mm
• 0402 (Imperial) = 1005 (Metric) → 0.04 × 0.02 inches / 1.0 × 0.5 mm
• 0201 (Imperial) = 0603 (Metric) → 0.02 × 0.01 inches / 0.6 × 0.3 mm

Warning: Notice how the Imperial "0201" shares a code with the Metric "0603" (which is actually the Imperial 0201 size). Always verify whether your component datasheet and PCB library are using EIA or Metric codes before routing your board.

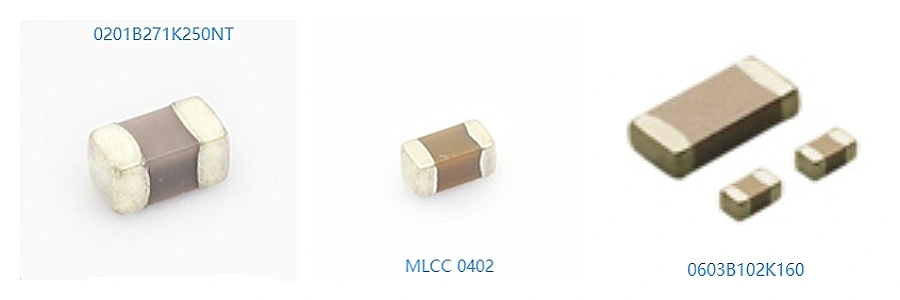

Detailed Comparison: 0603 vs 0402 vs 0201

Selecting the right SMD capacitor size involves balancing available PCB real estate against electrical requirements, such as capacitance limits, voltage ratings, and DC bias characteristics.

The 0603 Capacitor: The Reliable Workhorse

The 0603 capacitor (1.6mm × 0.8mm) was the industry standard for a long time. Today, it is primarily used in industrial applications, power supply circuits, and environments where board space is not strictly constrained.

• Advantages: Extremely easy to hand-solder for prototyping. They offer high capacitance values (up to 22μF or even 47μF with certain dielectrics) and higher voltage ratings (often 50V to 100V). The larger physical volume also means they suffer less from DC bias capacitance loss compared to smaller packages.
• Disadvantages: They consume a massive amount of PCB real estate by modern standards. Furthermore, their larger physical size results in higher Equivalent Series Inductance (ESL), reducing their effectiveness as high-frequency decoupling capacitors.

The 0402 Capacitor: The Industry Standard

The 0402 capacitor (1.0mm × 0.5mm) hits the "sweet spot" for modern PCB design. It represents an excellent balance between miniaturization, electrical capability, and manufacturing ease. It is the default choice for most consumer electronics, smart home devices, and general-purpose microcontrollers.

• Advantages: Significantly reduces board area compared to 0603. It has lower ESL, making it superior for bypassing high-frequency noise. It is fully compatible with standard, low-cost SMT assembly processes without requiring highly specialized pick-and-place nozzles.
• Disadvantages: Capacitance limits are tighter (usually capping around 2.2μF to 10μF, depending on voltage). Hand soldering requires a microscope and a steady hand.

The 0201 Capacitor: The High-Density King

The 0201 capacitor (0.6mm × 0.3mm) is nearly microscopic. It is driven by the demands of smartphones, 5G modules, smartwatches, and medical implants. Using 0201 components requires a transition to High-Density Interconnect (HDI) PCBs.

• Advantages: Unmatched space-saving capabilities. The ultra-low ESL makes 0201 capacitors exceptional for filtering multi-gigahertz RF signals and high-speed digital lines (like PCIe Gen 4/5 or USB4).
• Disadvantages: Extremely susceptible to DC bias degradation. A 1μF 0201 capacitor rated for 6.3V might only provide 0.2μF when operating at 3.3V. Furthermore, they are impossible to hand-solder reliably and require state-of-the-art SMT lines with high-precision solder paste inspection (SPI).

MLCC Package Size Selection Table

To help engineers make quick decisions, the following table compares the typical parameters across the three primary package sizes. Note that exact values depend on the specific manufacturer and dielectric material (e.g., X7R vs C0G vs X5R).

Parameter / Feature	0603 (Imperial)	0402 (Imperial)	0201 (Imperial)
Metric Code	1608	1005	0603
Dimensions (L × W) mm	1.60 × 0.80 mm	1.00 × 0.50 mm	0.60 × 0.30 mm
Typical Max Capacitance	~22μF - 47μF	~2.2μF - 10μF	~0.1μF - 1μF (rarely 2.2μF)
Typical Voltage Rating	Up to 100V+	Up to 50V	Up to 16V (Mostly 6.3V/10V)
Relative ESL (Inductance)	High (Poor >500 MHz)	Medium (Good up to ~1 GHz)	Ultra-Low (Excellent for RF/High-Speed)
DC Bias Severity	Low / Moderate	High	Extreme
Prototyping / Hand Solder	Easy	Difficult (Requires microscope)	Nearly Impossible

PCB Layout Rules for Miniaturized MLCCs

Shrinking your capacitor size means your PCB footprint design must be significantly more precise. A minor error in pad dimensions for a 0603 might be covered up by excess solder, but the same error on a 0201 component will result in severe manufacturing defects.

Pad Sizing and Spacing

The IPC-7351 standard outlines three footprint density levels (Density A, B, and C). For high-density boards using 0402 and 0201, Density Level C (Least Material Variation) is often utilized to maximize routing space. However, the inner distance between the two pads (the gap) is critical. If the gap is too narrow, solder balls can form under the component body, creating a short circuit. If the gap is too wide, the component may not attach to both pads, or the solder surface tension may pull the component out of alignment.

Trace Width vs. Pad Width

When routing traces to 0402 or 0201 capacitors, the trace width should ideally not exceed the pad width. If a wide power trace enters a tiny 0201 pad, the copper trace acts as a massive heatsink during the reflow process. This thermal imbalance causes the solder paste on the trace-side to melt slower than the other side, inevitably leading to the tombstone effect.

Via Placement and "Via-in-Pad"

For decoupling capacitors, you want vias as close to the pads as possible to minimize loop inductance (L = μ₀ * length / width). For 0603 and 0402, you can place vias adjacent to the pads, connected by a short, wide trace. For 0201, space is so constrained that engineers often consider "via-in-pad" design. However, standard via-in-pad will wick solder away from the component into the via barrel, leaving no solder for the capacitor. If via-in-pad is necessary, you must use epoxy-filled and plated-over vias (VIPPO), which requires advanced PCB manufacturing capabilities.

PCB Design Rules Summary Table

Use this reference table to establish safe design constraints when setting up your EDA/CAD tool footprints.

Layout Rule	0603 Recommendations	0402 Recommendations	0201 Recommendations
Pad Width (Y)	0.80 mm to 1.00 mm	0.50 mm to 0.60 mm	0.30 mm to 0.35 mm
Pad Length (X)	0.80 mm to 1.00 mm	0.60 mm to 0.70 mm	0.30 mm to 0.40 mm
Gap Between Pads (G)	0.70 mm to 0.80 mm	0.40 mm to 0.50 mm	0.20 mm to 0.25 mm
Thermal Relief	Recommended for ground planes	Strictly required to prevent tombstoning	Strictly required; trace must match pad width
Solder Mask Expansion	0.05 mm (2 mil)	0.05 mm (2 mil)	Non-Solder Mask Defined (NSMD) preferred
Via Placement	Adjacent, standard routing	Adjacent, short traces	Adjacent or Filled/Plated Via-in-Pad

SMT Assembly Challenges: Tombstoning and Quality Control

As you scale down from 0603 to 0201, the physics of the SMT reflow oven turn against you. The mass of the component becomes so negligible that the surface tension of molten solder can physically lift the component.

The Tombstone Effect (Manhattan Effect)

Tombstoning occurs when one end of an SMD capacitor solders perfectly, but the other end does not wet properly or melts at a different time. The surface tension of the melted solder pulls the capacitor upright, resembling a tombstone. This leaves an open circuit.

Causes:

• Uneven pad sizes or trace widths (thermal imbalance).
• Shadowing during IR reflow (one side heats faster).
• Inconsistent solder paste printing.
• Component placement misalignment by the pick-and-place machine.

Solutions: Ensure strict thermal symmetry in your PCB layout. Use a high-quality stencil with carefully designed paste apertures (often reducing the paste volume on the inner edges of the pads). To identify these risks before manufacturing, we highly recommend running your Gerber files through a DFM software analysis tool.

Solder Balling and Bridging

With 0402 and 0201 components, the gap between pads is measured in fractions of a millimeter. If too much solder paste is applied, or if the paste slumps during pre-heating, solder can squeeze out from beneath the component and form microscopic solder balls. These balls can easily bridge the tiny gap between the capacitor pads, causing a hard short circuit. Strict SMT process control, including Solder Paste Inspection (SPI) and Automated Optical Inspection (AOI), is mandatory for 0201 assembly.

How to Choose the Right MLCC Package Size for Your PCB

Choosing the correct size is a balancing act between electrical needs, space constraints, and manufacturing costs. Follow this strategic approach:

1. Determine Electrical Constraints First: Calculate the minimum capacitance you need after accounting for DC bias. If your 3.3V power rail requires a true 4.7μF of decoupling, an 0402 might lose 60% of its value under bias, forcing you to use an 0603 or place multiple 0402s in parallel.
2. Analyze Frequency Requirements: For frequencies above 1 GHz (RF circuits, high-speed clocks), ESL is the enemy. You must use 0402 or 0201 capacitors. The formula for capacitive reactance, X_C = 1 / (2πfC), shows that at high frequencies, the parasitic inductance (X_L = 2πfL) dominates the impedance. Smaller packages have lower L.
3. Evaluate Manufacturing Capabilities: Does your assembly house support 0201 components reliably? Most modern factories easily handle 0402, but 0201 requires tighter tolerances. If board space permits, sticking with 0402 will lower your defect rate and assembly costs.
4. Assess Thermal and Mechanical Stress: Larger ceramic capacitors (like 0805 or 0603) are more susceptible to physical cracking when the PCB flexes. Smaller capacitors like 0402 and 0201 experience less mechanical stress because their small footprint spans a shorter distance across a bending board.

Frequently Asked Questions (FAQ)

Can I replace a 0603 capacitor with a 0402 capacitor of the same value?

Electrically, yes, provided the voltage rating is sufficient. However, you cannot directly solder a 0402 component onto a 0603 pad footprint. The wide gap between 0603 pads will prevent the 0402 from connecting to both sides. You must update your PCB layout.

Why does my 10μF 0402 capacitor measure much lower in my circuit?

This is the DC bias effect. Class II dielectrics (like X5R and X7R) lose effective capacitance when a DC voltage is applied across them. The smaller the package size for a given voltage and capacitance, the more severe the DC bias effect. A 10μF 0402 at 5V may act like a 2μF capacitor.

Is 0201 the smallest MLCC available?

No. While 0201 (0.6mm × 0.3mm) is standard for extreme high-density, the industry also uses 01005 (0.4mm × 0.2mm) and even 008004 sizes for specialized RF modules and advanced semiconductor packaging. However, these are exceptionally difficult to assemble and are rarely used in standard PCB designs.
